Masters of Perimeter Security

 Swaraj Secutech is a TUV Sud audited ISO 9001 : 2015, ISO 45001 : 2018 manufacturing unit from India providing solutions for Hostile Vehicle Mitigation. We are driven by a team of security professionals who vouch by their integrity and professional competency while keeping customer delight as our core value.

For almost a decade we are committed to meet the strictest international standard of IWA 14-1 :2013 & CE. We are the only Indian OEM to have successfully crash tested 12 of our solutions at world renowned Horiba Mira, UK. Our range of innovative tested solutions play a crucial role in protecting our client's prestigious properties worldwide from vehicle borne attacks.

HOSTILE VEHICLE MITIGATION

1. Crash Rated Bollards: Bollards tested according to IWA 14-1:2013 standard against a 7.2-ton truck @48Km/hr (M30/K4), @64Km/hr(M40/k8) & @80Km/hr (M50/K12) with less than 1m penetration.

All parts of the Bollards are galvanised to prevent corrosion and smooth functioning even while submerged in water. The bollards come with a bright LED top along with a RAL coated or SS Sleeve body which gives the product a fine balance between aesthetics and security. All Bollards comes with a PLC enabled control panel that can integrate to all access control system.

2. Crash Rated Fixed Bollards: Swaraj Secutech has created one of the world's slimmest & shallowest fixed foundation bollard solutions that are ideal for locations which require shallow foundations or have constraints with under-ground utilities.

The S4-125 Bollard with a height of 900mm, diameter of 170mm and foundation of only 125mm has been crash tested at HORIBA MIRA, UK to stop a 7.2-ton truck@48kmph(K4/M30) with less than 1m penetration.

The S4500 Bollard with a height of 1000mm, diameter of 219mm and foundation of only 500mm has been crash tested at HORIBA MIRA, UK to stop a 7.2-ton truck@48kmph(K4/M30) with less than 1m penetration.

The S12 SF1200 Bollard with a height of 1200mm, diameter of 270mm and foundation of only 475 mm has been crash tested at HORIBA MIRA, UK to stop a 7.2-ton truck@80 kmph(K12/M50) with less than 1m penetration.

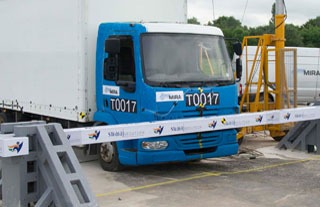

3. Crash Rated Boom Barriers: We are India's only OEM to have crash tested it's Arm/Boom Barrier at Horiba Mira, UK for an impact against 7.2-ton truck@48kmph(K4/M30) & 7.2-ton truck@64kmph(K8/M40). With shallow foundation of only 550mm it is ideal for locations that wants to avoid major excavation and at the same time requires an automatic actuation of HVM barrier. All parts of this Barrier are galvanised to prevent corrosion and smooth functioning even under strong tropical/ desert climatic conditions.

4. Crash Rated Gates: Swaraj Secutech's RAKSHAK Gate is a crash rated sliding gate designed to protect critical Industrial, Commercial and Defense establishments.

RAKSHAK 4 has been impact tested in accordance with IWA 14-1:2013 by HORIBA MIRA, UK by a fully laden 7.2-ton truck at 48 km/h. It resulted in the complete dead stop of the intruding vehicle with 0 Mtr Penetration.

5. Crash Rated Road Blocker: Swaraj Secutech in partnership with Peritect, UK presents Road Blocker (Model: Block Ultimate) which is designed to provide the highest level (K12/M50) of security against unauthorised vehicular access. The blocker has a height of 1000mm and is designed as a Hostile Vehicle Mitigation (HVM) solution providing protection to sites from extreme Vehicle Borne Improvised Explosive Device (VBIED) attack.

Physically impact tested in accordance with IWA14-1:2013 by Horiba MIRA, UK with 0m static penetration, it remains operational even after impact.

6. Crash Rated Movable Barrier: Swaraj Secutech's Movable Vehicular Barrier (Model: Shikhar) prevents intruding vehicles from entering a forbidden area. The barrier is modular in nature and are not fixed to ground. Made from High grade Carbon Steel, these barriers are certified to PAS 68 / IWA 14 :2013 std. When impacted at Horiba Mira, UK by 7500 kg truck @ 48kmph it was successful in bringing the vehicle to a complete stop. The greatest virtue of the barrier is its flexibility in design which enables individual barrier units to fit together and protect varying width of entrances.

7. Crash Tested Tyre killer: Swaraj Secutech's 3rd generation Electrohydraulic Tyre Killers ensures tyre puncture of an intruding vehicle irrespective of the direction of approach. It can disable all tyres and has been physically tested at Horiba Mira, UK against a 7.2ton truck. All six tyres of the intruding truck were damaged & punctured instantaneously.

TRAFFIC MANAGEMENT

1. Boom Barriers: 0.6 secs ETC lane barriers, 1.2secs Parking barriers

When the requirement is a combination of maintenance free operation and aesthetic looks, Patriot barrier series from Swaraj Secutech are the ideal choice. Customisable to consumer's choice of colour the barrier has the following features:

•  100% Duty Cycle with 5 million MTBF

•  24 VDC BLDC / 230 VAC Motor option

•  Solar Operation as an optional Add On for 24VDC Motors

•  Manual operation in case of power failure

•  Anti-collision (Swing-away mechanism) protection for boom arm till 3m

•  Operating Speed from 0.6 Sec for Ultra-Fast Boom Barriers

2. Flap Barriers: Swaraj Secutech's “ FB SERIES “Flap Barrier is a user-friendly access barrier ideal for efficient control  of high flow pedestrian movement. The flap barrier's design is sleek, strong and enables quick sliding motion of glass/ acrylic flaps along with bright LED display. The Flap Barrier effectively detects tailgating & incorporates a fail-safe solution wherein in case of an emergency or power failure, egress is provided for crisis evacuations. The Flap Barrier can be integrated with all access control devices that effectively prevents unauthorised access.

3. Tripods: Swaraj Secutech's Eco Trio SA series of Tripod Turnstiles are a compact and highly reliable solution meant to prevent unauthorised pedestrian access. The compact design makes it ideal for installations where space is restricted, and high throughput is required. The microcontroller-based operation of the tripod mechanism ensures noiseless & continuous operation. The unique drop arm feature provides a fail-safe solution in case of emergency or power failure, providing emergency egress. This tripod can be integrated with any 03rd party access control devices.

4. Full Height Turnstiles: Swaraj Secutech's “FT SERIES “Full Height Turnstile is a user-friendly & heavy-duty access control barrier developed for control of pedestrian movement as well as mob control. The turnstile can be mounted with minimal foundation requirement and comes with a bright LED display. The Full Height Turnstile can be integrated with any access control devices that effectively prevents unauthorised access. It also incorporates a fail-safe mechanism wherein in case of an emergency or power failure, egress is provided for crisis evacuations. The Turnstiles are available in both 03 Arms (120 Degree) & 04 Arm (90 Degree) options.

We constantly ride the innovation curve and have developed and successfully tested some of the world's shallowest foundation products.

Our solutions have been recognised by some of the security industry's leading professional bodies. We are proudly listed in CPNI, UK's directory and are a member of PSSA, UK.

Swaraj Secutech is currently working with partners in India, Singapore, UAE, Kingdom of Bahrain, Kingdom of Saudi Arabia, Sri Lanka, Kenya, Indonesia.

For more information visit:
www.swarajsecutech.com



Choose Crash Tested Solutions. Ensure 100% Protection.
